SKU: G0299

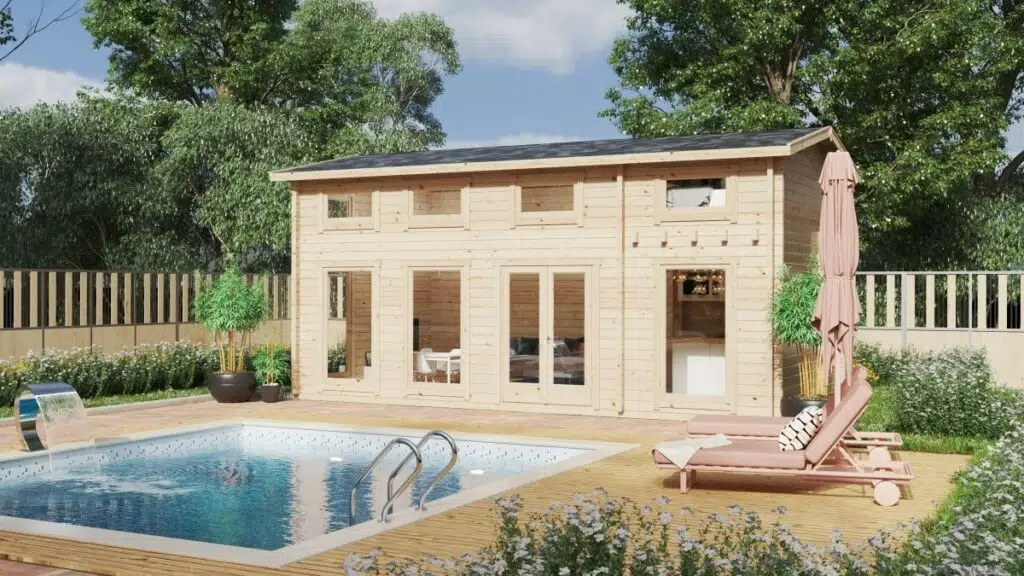

The Sweden B XL log cabin with sleeping loft gives you a massive 35m2 of usable space but only requires a footprint of 7.4 x 3.9m. These Sweden series premium quality log cabins with sleeping loft are widely used as camping cabins, garden guest houses and rental or just as additional living space and annex to your existing home.
70mm wall thickness and double-glazed doors and windows ensure good stability, strength, weather resistance and a very long life span. Additionally, we recommend our roof and floor insulation kits for a significant increase to its thermal performance. These affordably priced kits mean that the insulated cabin can be used year round with just a small electric heater for the colder months.
Cabin Kitset Flatpack - $50990.00
Specifications
all thickness | 70 mm |
---|---|
Width | 738 cm |
Depth | 393 cm |
Height | 385 cm |
Room area | 27 m2 |
Loft area | 7.5 m2 |
Roof type | apex |
Roof size | 38 m2 |
Roof slope | 14.14 degrees |
Roof overhang | 30 cm |
Roof boards | 18 mm |
Nr of rooms | 3 |
Nr of floors | 2 |
Door size | External Door 146.5 x 197 cm, Internal Door 80 x 198 cm |
Door style | Double glazed, double doors; 1 internal door without glazing (single) |
Nr of windows | 9 pcs |

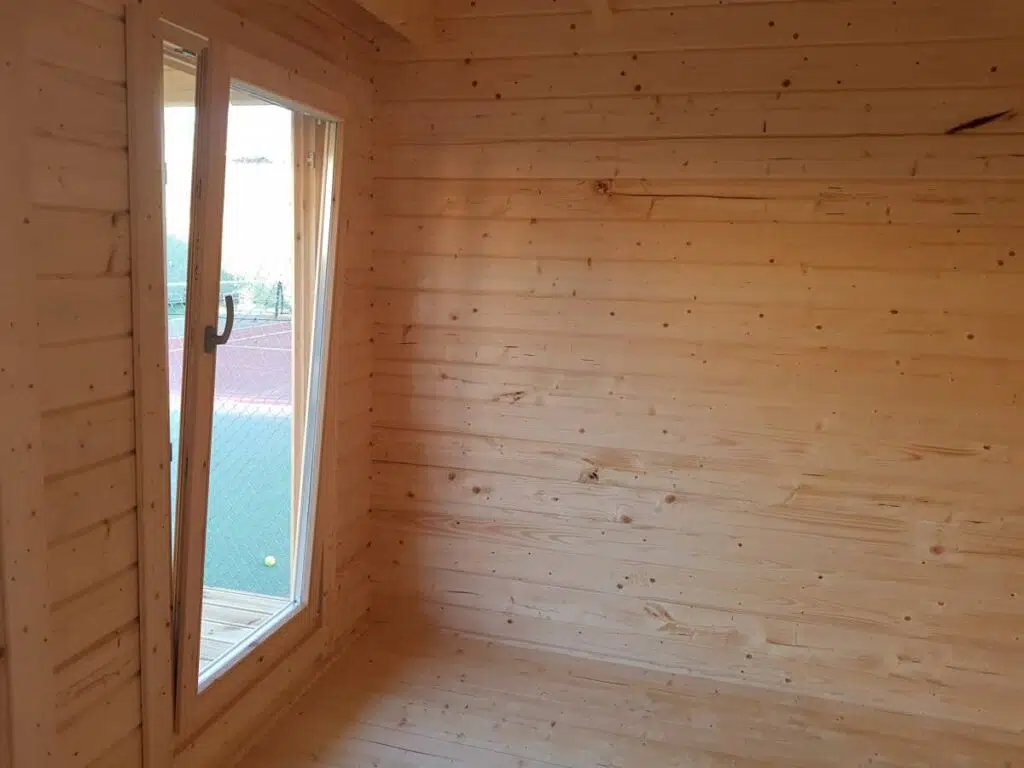

Windows | 3 x Opening Tilt and Turn (83 x 183 cm), 1 x Fixed Non-opening (83 x 183 cm), 4 x Fixed Non-opening (83 x 55 cm), 1 x Opening Tilt (83 x 55 cm) |
Glazing | double glazing, tempered safety glass |
Wood type | Nordic spruce, untreated |
Color | natural wood (untreated) |
Additional info | Treated foundation joists, wind braces, assembly kit, real glass in windows and doors, cylinder lock, product manual, 5 years guarantee. Cat: large garden log cabins with sleeping loft. |

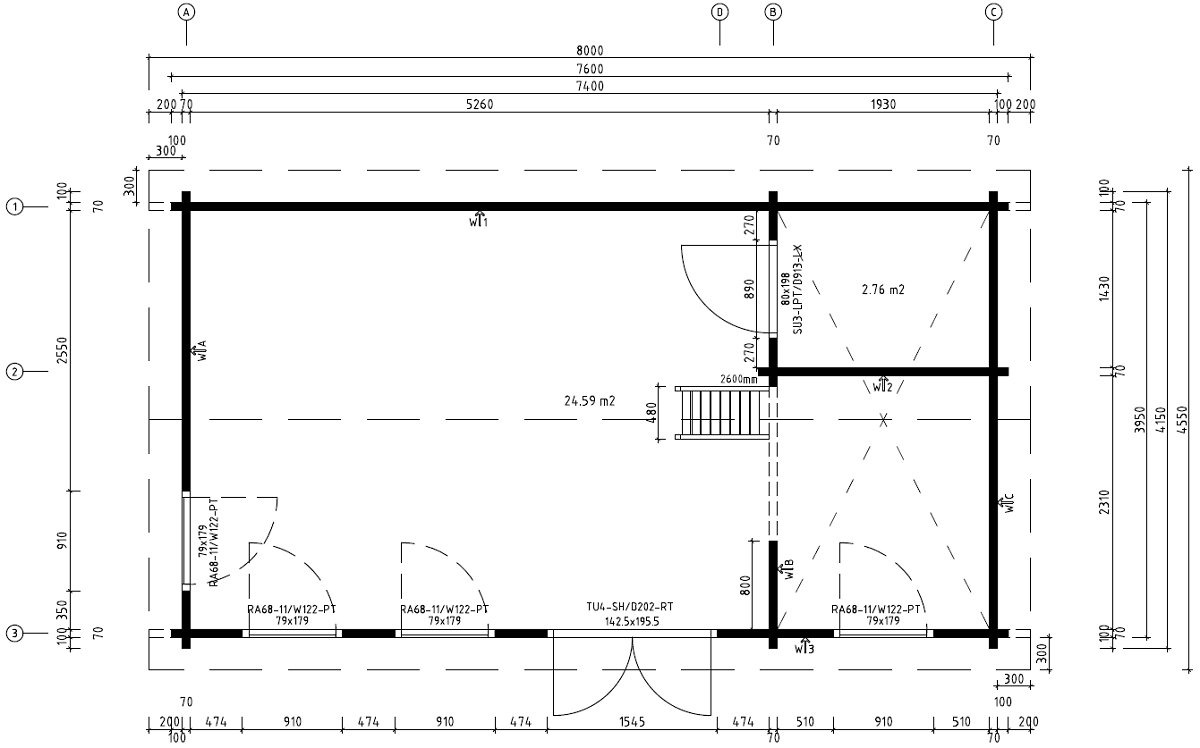

Technical Drawings:
Technical Drawings:
