SKU: G0351
The Sweden Q log cabin has nearly 30 m2 of space on its ground floor and an additional 4 x 2 m loft that can be used as a bedroom or for storage. All its wooden parts are made from carefully selected Nordic spruce. Standard cabin kit comes with all our great log cabin features such as 70 mm thick wall planks, double glazed doors and windows equipped with European made hardware to ensure smooth functionality, extra thick floorboards and foundation beams, roof boards, ladder, strengthening metal rods in walls as well as all metal fixings and detailed cabin plans.
This superb quality log cabin can be used as a garden room with sleeping loft, holiday cabin or a rental cabin. For better thermal performance we recommend our roof and floor insulation kits at very affordable prices. You will need to install a small heater for winter months but it is very easy to install electrics in our cabins.
Cabin Kitset Flatpack - $52990.00
Specifications
| Wall thickness | 70 mm |
|---|---|
| Width | 738 cm |
| Depth | 393 cm |
| Height | 392 cm |
| Room area | 27 m2 |
| Loft area | 7.5 m2 |
| Roof type | pent |
| Roof size | 35 m2 |
| Roof slope | 7.73 degrees |
| Roof overhang | 30 cm |
| Roof boards | 18 mm |
| Nr of rooms | 3 |
| Nr of floors | 2 |
| Door size | 1 external door 0.84 x 1.96; 1 internal door 0.84 x 1.98 m |
| Door style | Double glazed, 1 single exterior door; 1 internal door without glazing (single) |
| Nr of windows | 9 pcs |
| Windows | 4 x window 0.8 x 1.8 m. All opening. 5 x fixed window 0.8 x 0.5 m. |
| Glazing | double glazing, tempered safety glass |
| Wood type | Nordic spruce, untreated |
| Color | natural wood (untreated) |
| Additional info | Treated foundation joists, wind braces, assembly kit, real glass in windows and doors, cylinder lock, product manual, 5 years guarantee. Cat: large garden log cabins with sleeping loft. |

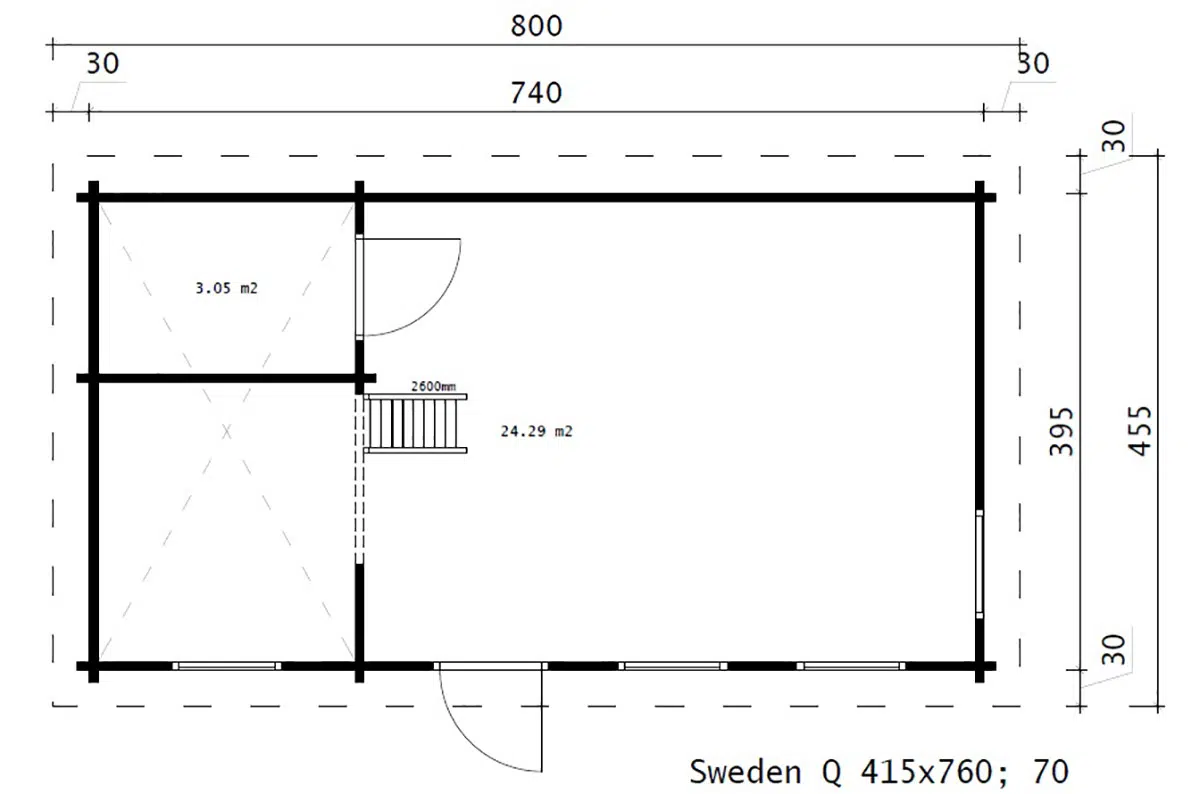

Technical Drawings:
Technical Drawings:
