SKU: G0266
This 70mm luxury wooden lodge has over 20 m2 space for living and dining, large shower room and 2 x 4 m upper loft for extra sleeping places or for storage. This cabin can comfortably accommodate four people.
70mm wall thickness and additional metal rods in the walls ensure good stability and a long-life span. This cabin comes with high quality double glazed windows and doors as well as with extra thick 28mm floor boards. Additional floor and roof insulation together with heating enable you to use this cabin all year round. Whether you are into building a camping site, rental cabin in your backyard or a luxury guest house, the Sweden B wooden lodge is worth considering.
Save
$5000.00!
Cabin Kitset Flatpack
Was
$42990.00
Now
$37990.00
Specifications
Wall thickness | 70 mm |
---|---|
Width | 628 cm |
Depth | 393 cm |
Height | 385 cm |
Room area | 23 m2 |
Loft area | 7.5 m2 |
Roof type | apex |
Roof size | 35 m2 |
Roof slope | 14.14 degrees |
Roof overhang | 30 cm |
Roof boards | 18 mm |
Nr of rooms | 2 |
Nr of floors | 2 |
Door size | External doors 1.43 x 1.96; 1 internal door 0.8 x 1.98 m |
Door style | Double glazed, double doors; 1 internal door without glazing (single) |
Nr of windows | 9 pcs |
Windows | 4 x window 0.8 x 1.8 m (2 openable, 2 fixed). 5 x fixed window 0.8 x 0.5 m. |
Glazing | double glazing, tempered safety glass |
Wood type | Nordic spruce, untreated |
Color | natural wood (untreated) |
Additional info | Treated foundation joists, wind braces, assembly kit, real glass in windows and doors, cylinder lock, product manual, 5 years guarantee. Cat: large garden rooms with sleeping loft. |

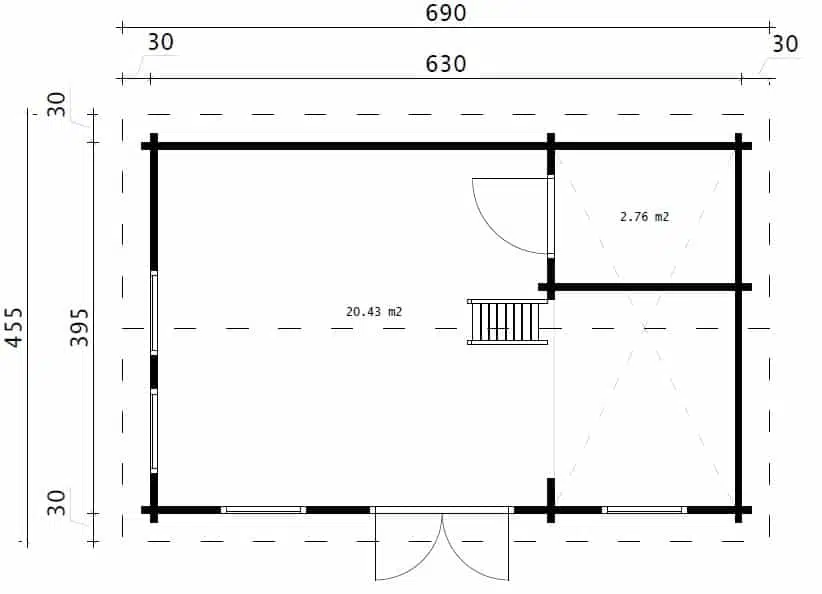

Technical Drawings:
Technical Drawings:
